WPA3-Enterprise provides strong security and supports authentication using domain identities through a RADIUS server and 802.1X authentication. This is the best choice for a corporate environment requiring user- based authentication.
WPA3-Enterprise Benefits:
Uses 802.1X with EAP (Extensible Authentication Protocol) to authenticate users via a directory service (e.g., Active Directory).
Eliminates shared passwords (PSK) for authentication.
Provides strong encryption and resistance to brute-force attacks.
Incorrect Options:
A:Enable MAC Security:
MAC filtering is not secure because MAC addresses can be spoofed.
B:Generate a PSK for Each User:
Pre-shared keys (PSK) are used in WPA-Personal, not in an enterprise setting.
Does not scale well in corporate environments.
C:Implement WPS:
Wi-Fi Protected Setup (WPS) is a vulnerable security method meant for home users.
Not suitable for enterprise authentication.

Split-tunneling allows only company data to pass through the VPN while other internet traffic continues to use the user’s local ISP connection. This matches the described behavior.

The option that most directly secures sensitive information on the network is data-in-transit encryption. This ensures that data packets are unreadable to attackers who intercept them while moving across the network.
Protocols such as TLS, HTTPS, IPsec, and SSH protect confidentiality and integrity of sensitive information.
B). Principle of least privilege (PoLP) secures access control but does not directly protect data in motion.
C). Role-based access control (RBAC) enforces permissions but again does not secure the data while transmitted.
D). Multifactor authentication (MFA) strengthens identity verification but does not directly protect the data itself once transmitted.
Thus, while all options contribute to overall security, encryption of data-in-transit most directly addresses protection of sensitive information on the network.
References (CompTIA Network+ N10-009):
Domain: Network Security – Encryption methods, confidentiality, data-in-transit protection.

Introduction to Administrative Distance
Administrative distance (AD) is a value used by routers to rank routes from different routing protocols. AD represents the trustworthiness of the source of the route. Lower AD values are more preferred. If a router has multiple routes to a destination from different sources, it will choose the route with the lowest AD.
Static Routes and Backup Routes
When a dynamic routing protocol is not used, static routes can be employed. Static routes are manually configured routes. To ensure a backup route, multiple static routes to the same destination can be configured with different AD values.
Configuring Static Routes with Administrative Distance
The primary route is configured with a lower AD value, making it the preferred route. The backup route is configured with a higher AD value. In the event of the primary route failure, the router will then use the backup route.
Example Configuration:
plaintext
Copy code
ip route 192.168.1.0 255.255.255.0 10.0.0.1 1
ip route 192.168.1.0 255.255.255.0 10.0.0.2 10
In the above example, 192.168.1.0/24 is the destination network.
10.0.0.1 is the next-hop IP address for the primary route with an AD of 1.
10.0.0.2 is the next-hop IP address for the backup route with an AD of 10.
Verification:
After configuration, use the show ip route command to verify that the primary route is in use and the backup route is listed as a candidate for use if the primary route fails.
Reference:
CompTIA Network+ guide explains the concept of administrative distance and its use in static routing configuration (see page Ref 9 Basic Configuration Commands).

The laptop is most likely using the 2.4GHz frequency band. According to the CompTIA Network+ N10-009 objectives, the 2.4GHz band is particularly susceptible to electromagnetic interference (EMI) from common household and office devices, including microwave ovens, cordless phones, Bluetooth devices, and baby monitors. Microwave ovens operate at approximately 2.45GHz, which overlaps directly with the 2.4GHz Wi- Fi spectrum. When the microwave is powered on, it emits interference that can significantly degrade or completely disrupt nearby wireless communications operating in this band.
The 5GHz and 6GHz bands operate at much higher frequencies and do not overlap with microwave emissions, making them far less prone to this type of interference. While higher-frequency bands have shorter range and lower wall penetration, they provide cleaner channels and improved performance in dense environments. The 900MHz band is not used by standard Wi-Fi networks defined in the Network+ objectives and is more commonly associated with legacy cordless phones and certain IoT or proprietary wireless technologies.
Network+ troubleshooting guidance emphasizes identifying environmental interference sources when diagnosing intermittent wireless connectivity. A common mitigation strategy is to migrate affected devices to the 5GHz or 6GHz bands or reposition access points away from interference sources like break room appliances.

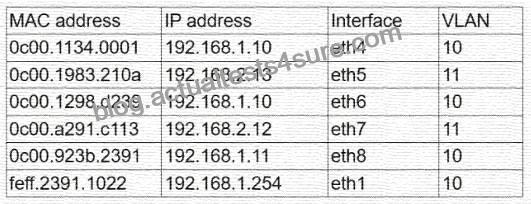

This scenario describes a duplicate IP address. The ARP table shows two different MAC addresses (0c00.
1134.0001 and 0c00.1298.d239) associated with the same IP address (192.168.1.10), which leads to ARP table conflicts and intermittent connectivity.
From Andrew Ramdayal’s guide:
“Duplicate IP addresses occur when two devices on the same network are assigned the same IP address, causing network conflicts. Common issues include manual configuration errors or DHCP lease issues.
Resolution includes using IP management tools and avoiding overlaps in DHCP and static IP assignments.”

* Importance of Proper Termination:
* Cat 8 cabling requires precise termination practices to ensure signal integrity and reduce interference. One common requirement is to wrap the end connections in copper tape to maintain shielding and reduce electromagnetic interference (EMI).
* Interference Troubleshooting:
* Interference in high-frequency cables like Cat 8 can be caused by improper shielding or grounding. Checking the end connections for proper wrapping in copper tape is a crucial step.
* Why Other Options are Less Likely:
* Passthrough modular crimping plugs:Not specifically related to interference issues and are typically used for ease of cable assembly.
* Connecting RX/TX wires to different pins:Would likely result in no connection or incorrect data transmission rather than interference.
* Running a speed test on a device that can only achieve 100Mbps speeds:This would not diagnose interference and would not provide relevant information for Cat 8 cabling rated for higher speeds.
* Corrective Actions:
* Verify that all end connections are properly wrapped with copper tape before termination.
* Ensure that the shielding is continuous and properly grounded throughout the installation.
* Retest the cabling for interference after making corrections.
References:
* CompTIA Network+ study materials and structured cabling installation guides.

A UPS (Uninterruptible Power Supply) provides backup power to devices during a power outage, allowing for continuous operation and protecting against sudden shutdowns that could cause data loss or equipment damage. The document confirms:
“A UPS (Uninterruptible Power Supply) is essential for maintaining power to critical devices during an outage, protecting data and ensuring continuous operation until power is restored or a safe shutdown can be performed.”

Geofencing at the network layer typically maps geographic regions to ranges of public IP addresses and then enforces access controls on those blocks, effectively limiting connectivity based on location.

A DDoS (Distributed Denial of Service) attack is often launched from botnets — networks of compromised systems (bots or zombies) under the control of an attacker. These devices flood the target with traffic to disrupt services.

A /27 mask provides 32 total addresses per subnet, 30 of which are usable. A Class C network divided into /27 segments yields exactly eight subnets, each supporting the required 30 devices.

Security Assertion Markup Language (SAML) is an XML-based standard used for exchanging authentication and authorization data between parties, particularly between an identity provider (IdP) and a service provider (SP). SAML is commonly used in Single Sign-On (SSO) solutions to pass sensitive user information, such as login credentials and attributes, securely between the identity provider and the service provider.
* SAML (Security Assertion Markup Language): Facilitates web-based authentication and authorization, allowing users to access multiple services with a single set of credentials.
* XML-based: Uses XML to encode the authentication and authorization data, ensuring secure transmission of user information.
* Identity Federation: Enables secure sharing of identity information across different security domains, making it ideal for enterprise SSO solutions.
Network References:
* CompTIA Network+ N10-007 Official Certification Guide: Covers authentication protocols, including SAML.
* Cisco Networking Academy: Provides training on identity management and federation technologies.
* Network+ Certification All-in-One Exam Guide: Explains SAML and its role in secure identity management and SSO.

Port Address Translation allows multiple internal devices to share a single public IP address by differentiating connections using port numbers.

A switched virtual interface provides a Layer 3 interface for each VLAN, enabling inter-VLAN routing so devices in different VLANs can communicate.

Comprehensive and Detailed Explanation:
LDAP over SSL (LDAPS)usesport 636to providesecure, encrypted authenticationfor directory services.
Breakdown of Options:
* A. SMTP (Simple Mail Transfer Protocol)- Usesport 25, not 636.
* B. Syslog- Usesport 514 (UDP),not 636.
* C. TFTP (Trivial File Transfer Protocol)- Usesport 69 (UDP),not 636.
* D. LDAPS (Lightweight Directory Access Protocol Secure)-#Correct answer.Usesport 636for secure directory authentication.

When deploying multiple Power over Ethernet (PoE) devices, the switch’s power budget can be exhausted. If the available wattage on the switch cannot supply the additional AP, it will fail to power on. This is the most likely cause when previous APs worked fine but a new one does not.
A . Signal strength affects wireless connectivity, not whether the AP powers up.
B . Duplex mismatch causes poor throughput, not power failure.
D . CRC errors point to cabling issues but do not prevent booting if no power is available.
Reference (CompTIA Network+ N10-009):

Comprehensive and Detailed Explanation (aligned to N10-009):
For a log collector server, the primary needed service is Syslog, which typically uses UDP port 514. Other ports may be open for management (e.g., 22 for SSH) or SNMP traps (162) if integrated. However, port 80 (HTTP) should not be open unless required, as it increases attack surface and does not directly serve the log collection purpose. Disabling it hardens the server.
A . 22 (SSH) is needed for secure management.
C . 162 (SNMP trap) may be required for monitoring/log correlation.
D . 514 (Syslog) is essential for log collection.

Verifying full system functionality occurs after implementing a fix. This step ensures the solution resolved the issue and that performance is back to expected levels. Comparing current throughput to baseline measurements is part of validation testing to confirm everything is within normal operational parameters.
A). Implement the solution applies the fix but does not confirm results.
C). Document findings happens at the end of troubleshooting.
D). Test the theory comes earlier, when trying to confirm the suspected cause.
References (CompTIA Network+ N10-009):
Domain: Network Troubleshooting – Troubleshooting methodology steps, baselines, verification testing.

Multimode fiber optic cables involve the transmission of light signals that bounce off the core’s cladding as they travel down the fiber. This characteristic differentiates it from single-mode fiber, where the light travels directly down the fiber without reflecting off the cladding.
Here are some detailed points about multimode fiber cables:
* Construction: Multimode fibers have a larger core diameter, typically 50 or 62.5 microns, compared to single-mode fibers, which have a core diameter of about 9 microns.
* Light Propagation: The larger core of multimode fiber allows multiple light modes to propagate.
These modes travel at different angles, leading to reflections off the core-cladding boundary.
* Distance and Bandwidth: Due to modal dispersion, where different light modes arrive at the receiver at different times, multimode fibers are suited for shorter distance applications compared to single- mode fibers. Typical distances are up to 550 meters for 10 Gbps Ethernet using OM4 multimode fiber.
* Applications: Multimode fibers are commonly used in LANs (Local Area Networks), data centers, and for shorter distance data transmission due to their cost-effectiveness and ease of installation.
Network References:
* CompTIA Network+ N10-007 Official Certification Guide, which covers fiber optic technologies, including the differences between multimode and single-mode fibers.
* Cisco Networking Academy: Provides training materials and reference guides on the properties of different fiber optic cables.
* Fiber Optic Association (FOA): A professional society dedicated to fiber optics, offering extensive information and certification on fiber optic technologies.
Multimode fibers are specifically designed for short-range communication with higher data rates and are typically used in environments like data centers, where high bandwidth over shorter distances is crucial. The reflections off the cladding, inherent to multimode fiber, facilitate this high-capacity communication.

Comprehensive and Detailed Explanation (aligned to N10-009):
802.1X provides port-based Network Access Control (NAC), requiring authentication (often through RADIUS) before granting access. This is the standard for enterprise authentication on both wired and wireless networks.
A . 802.1Q defines VLAN trunking.
C . 802.3bt defines higher-power PoE.
D . 802.11h deals with spectrum management in wireless.
Reference (CompTIA Network+ N10-009):

See the step by step complete solution below.
Explanation:

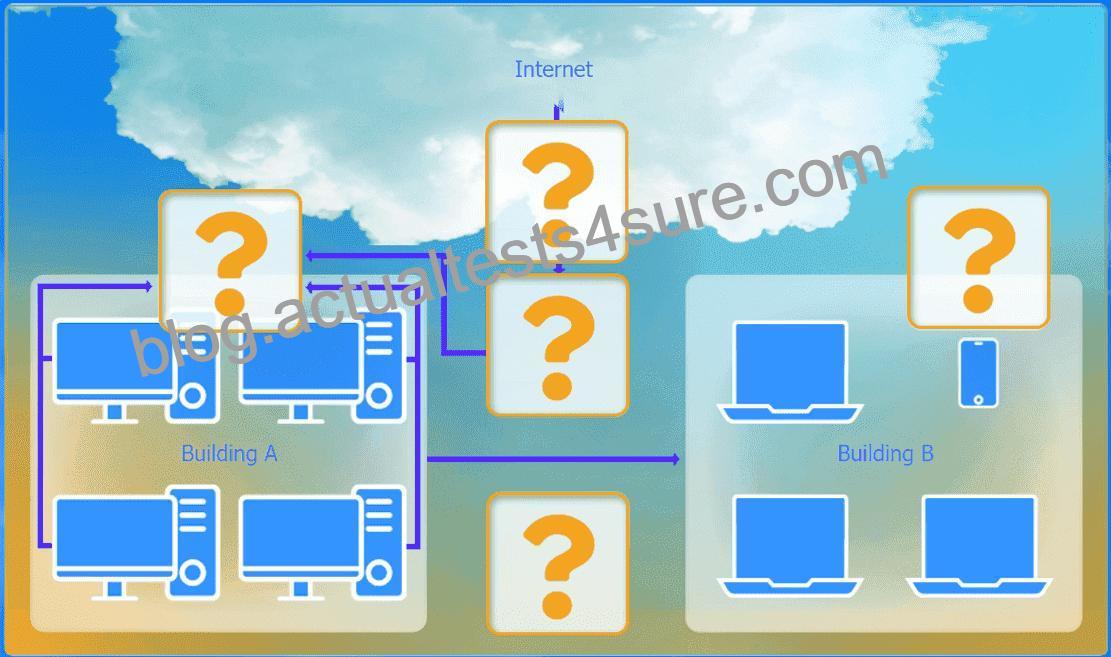

Devices in both buildings should be able to access the Internet.
Security insists that all Internet traffic be inspected before entering the network.
Desktops should not see traffic destined for other devices.

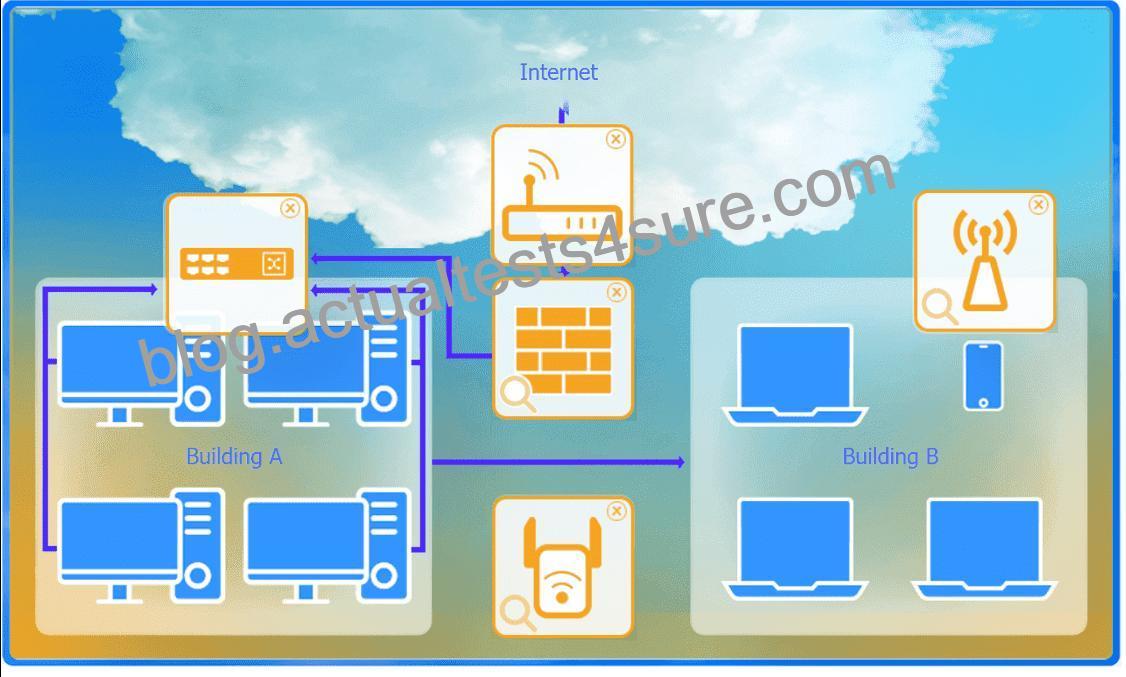

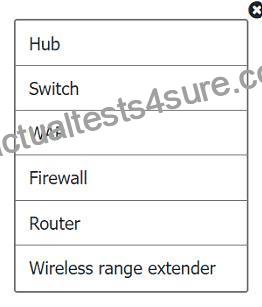

Here is the corrected layout with explanation:
Building A:
Switch: Correctly placed to connect all desktops.
Firewall: Correctly placed to inspect all incoming and outgoing traffic.
Building B:
Switch: Not needed. Instead, place a Wireless Access Point (WAP) to provide wireless connectivity for laptops and mobile devices.
Between Buildings:
Wireless Range Extender: Correctly placed to provide connectivity between the buildings wirelessly.
Connection to the Internet:
Router: Correctly placed to connect to the Internet and route traffic between the buildings and the Internet.
Firewall: The firewall should be placed between the router and the internal network to inspect all traffic before it enters the network.
Corrected Setup:
Top-left (Building A): Switch
Bottom-left (Building A): Firewall (inspect traffic before it enters the network) Top-middle (Internet connection): Router Bottom-middle (between buildings): Wireless Range Extender Top-right (Building B): Wireless Access Point (WAP) In this corrected setup, the WAP in Building B will connect wirelessly to the Wireless Range Extender, which is connected to the Router. The Router is connected to the Firewall to ensure all traffic is inspected before it enters the network.

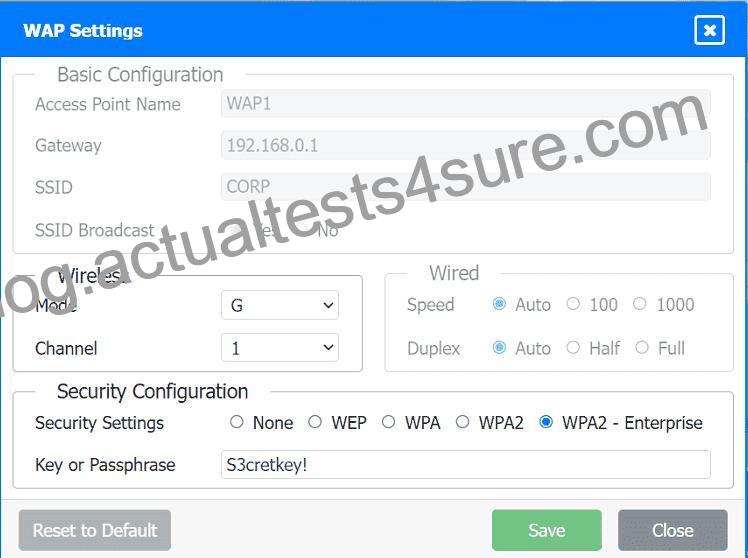

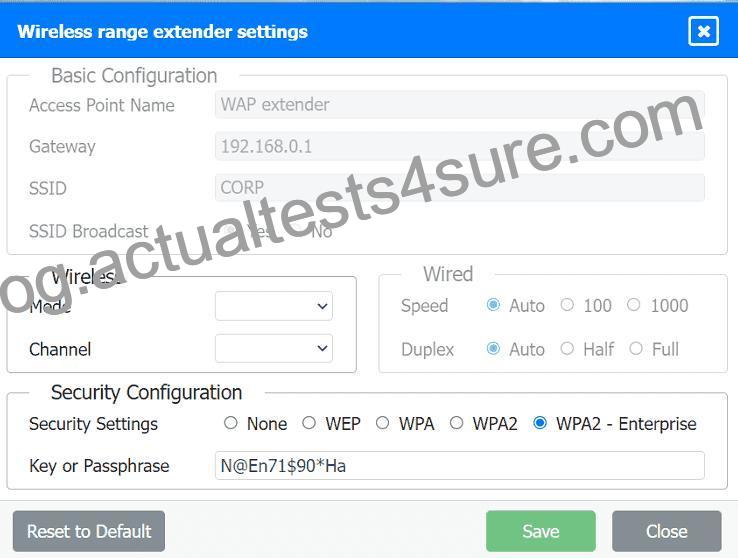

Configuration for Wireless Range Extender:
SSID: CORP
Security Settings: WPA2 or WPA2 – Enterprise
Key or Passphrase: [Enter a strong passphrase]
Mode: [Set based on your network plan]
Channel: [Set based on your network plan]
Speed: Auto
Duplex: Auto
With these settings, both buildings will have secure access to the Internet, and all traffic will be inspected by the firewall before entering the network. Desktops and other devices will not see traffic intended for others, maintaining the required security and privacy.

To configure the wireless range extender for security, follow these steps:
SSID (Service Set Identifier):
Ensure the SSID is set to “CORP” as shown in the exhibit.
Security Settings:
WPA2 or WPA2 – Enterprise: Choose one of these options for stronger security. WPA2-Enterprise provides more robust security with centralized authentication, which is ideal for a corporate environment.
Key or Passphrase:
If you select WPA2, enter a strong passphrase in the “Key or Passphrase” field.
If you select WPA2 – Enterprise, you will need to configure additional settings for authentication servers, such as RADIUS, which is not shown in the exhibit.
Wireless Mode and Channel:
Set the appropriate mode and channel based on your network design and the environment to avoid interference. These settings are not specified in the exhibit, so set them according to your network plan.
Wired Speed and Duplex:
Set the speed to “Auto” unless you have specific requirements for 100 or 1000 Mbps.
Set the duplex to “Auto” unless you need to specify half or full duplex based on your network equipment.
Save Configuration:
After making the necessary changes, click the “Save” button to apply the settings.
Here is how the configuration should look after adjustments:
SSID: CORP
Security Settings: WPA2 or WPA2 – Enterprise
Key or Passphrase: [Enter a strong passphrase]
Mode: [Set based on your network plan]
Channel: [Set based on your network plan]
Speed: Auto
Duplex: Auto
Once these settings are configured, your wireless range extender will provide secure connectivity for devices in both buildings.
Firewall setting to to ensure complete compliance with the requirements and best security practices, consider the following adjustments and additions:
DNS Rule: This rule allows DNS traffic from the internal network to any destination, which is fine.
HTTPS Outbound: This rule allows HTTPS traffic from the internal network (assuming 192.169.0.1/24 is a typo and should be 192.168.0.1/24) to any destination, which is also good for secure web browsing.
Management: This rule allows SSH access to the firewall for management purposes, which is necessary for administrative tasks.
HTTPS Inbound: This rule denies inbound HTTPS traffic to the internal network, which is good unless you have a web server that needs to be accessible from the internet.
HTTP Inbound: This rule denies inbound HTTP traffic to the internal network, which is correct for security purposes.
Suggested Additional Settings:
Permit General Outbound Traffic: Allow general outbound traffic for web access, email, etc.
Block All Other Traffic: Ensure that all other traffic is blocked to prevent unauthorized access.
Firewall Configuration Adjustments:
Correct the Network Typo:
Ensure that the subnet 192.169.0.1/24 is corrected to 192.168.0.1/24.
Permit General Outbound Traffic:
Rule Name: General Outbound
Source: 192.168.0.1/24
Destination: ANY
Service: ANY
Action: PERMIT
Deny All Other Traffic:
Rule Name: Block All
Source: ANY
Destination: ANY
Service: ANY
Action: DENY
Here is how your updated firewall settings should look:
Rule Name
Source
Destination
Service
Action
DNS Rule
192.168.0.1/24
ANY
DNS
PERMIT
HTTPS Outbound
192.168.0.1/24
ANY
HTTPS
PERMIT
Management
ANY
192.168.0.1/24
SSH
PERMIT
HTTPS Inbound
ANY
192.168.0.1/24
HTTPS
DENY
HTTP Inbound
ANY
192.168.0.1/24
HTTP
DENY
General Outbound
192.168.0.1/24
ANY
ANY
PERMIT
Block All
ANY
ANY
ANY
DENY
These settings ensure that:
Internal devices can access DNS and HTTPS services externally.
Management access via SSH is permitted.
Inbound HTTP and HTTPS traffic is denied unless otherwise specified.
General outbound traffic is allowed.
All other traffic is blocked by default, ensuring a secure environment.
Make sure to save the settings after making these adjustments.

Introduction to Subinterfaces:
Subinterfaces are logical interfaces created on a single physical interface. They are used to enable a router to support multiple networks on a single physical interface.
Use Case for Subinterfaces:
Subinterfaces are commonly used in scenarios where VLANs are implemented. A router with a single physical LAN port can be configured with multiple subinterfaces, each associated with a different VLAN.
This setup allows the router to route traffic between different VLANs.
Example Configuration:
Consider a router with a single physical interface GigabitEthernet0/0 and two VLANs, 10 and 20.
interface GigabitEthernet0/0.10
encapsulation dot1Q 10
ip address 192.168.10.1 255.255.255.0
!
interface GigabitEthernet0/0.20
encapsulation dot1Q 20
ip address 192.168.20.1 255.255.255.0
The encapsulation dot1Q command specifies the VLAN ID.
Explanation of the Options:
A: A router with only one available LAN port: This is correct. Subinterfaces allow a single physical interface to manage multiple networks, making it essential for routers with limited physical interfaces.
B: A firewall performing deep packet inspection: Firewalls can use subinterfaces, but it is not a requirement for deep packet inspection.
C: A hub utilizing jumbo frames: Hubs do not use subinterfaces as they operate at Layer 1 and do not manage IP addressing.
D: A switch using Spanning Tree Protocol: STP is a protocol for preventing loops in a network and does not require subinterfaces.
Conclusion:
Subinterfaces provide a practical solution for routing between multiple VLANs on a router with limited physical interfaces. They allow network administrators to optimize the use of available hardware resources efficiently.
References:
CompTIA Network+ guide detailing VLAN configurations and the use of subinterfaces (see page #Ref9 Basic Configuration Commands).
